Mobile Juicing Trailer

Mobile Juicing Video
Juicing System in Action

The Kreuzmayr KML series of mobile juicing trailer are an ideal way to take fruit juicing to the fruit grower. Only a power supply, a hosepipe and a waste water drain are needed to operate the mobile juicing trailer.
Fruit is loaded onto the trailer (with or without GKE bin tipper), then washed, milled and pressed into juice in a continuous process. The juice is is heated to around 85° Celsius by the on board pasteurizer and then filled into Bag in Box or bottles.

There are 3 versions available which vary in output. 500, 750 and 1500 liters/hour. All systems are configured to handle the set amount.



Advantages

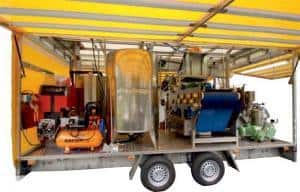

Mobile Juicing Machine
Mobile Juicing Machine
  • Plug-in design – only a hosepipe and an electricity supply are needed on-site to operate the mobile juicing trailer
  • The equipment is constructed from stainless steel and food grade plastics
  • The trailer is constructed from stainless steel and aluminium
  • Complete with built-in pressure washer and air compressor
  • Low maintenance design
  • Easy to clean and maintain
  • Customer specific alternations are possible
  • Enables fruit growers to have their own juice from their own fruit.

Function of the Mobile Juicing Trailer

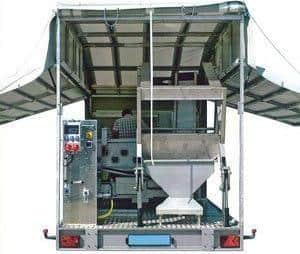

Mobile Juicing Unit
Mobile Juicing Unit

Pallet boxes of apples, pears, quinces, etc are emptied into the on-board bashing tank by the box tipper. They are then elevated into a mill, ground into a pomace and fed into a belt press. The juice is autoatically pumped into tanks whilst the presses pomace is discharged into a pallet box.

The pasteurizer pumps the juice from the tanks and gently heats it to approximately 85° Celsius. It is then pumped to the filling machine, which can be either a bag-in-box or bottle filler.

Each machine can be used individually or together as part of the system. Once finished, the equipment can be dismantled without the need for tools for ease of cleaning or maintenance.



Standard Version

A Mobile Juice Trailer
A Mobile Juicing Trailer
  • Bin Tipper
  • Washer / Fruit mill
  • Belt Press
  • Stainless steel tanks
  • Pasteurizer
  • Bag in Box filler / bottle filler
  • High Pressure Cleaner
  • Compressor
  • Control Cabinet

Each unit can be adjusted to individual needs.
