Labeler Model 700

The Labeler Model 700 machines are fully loaded with features to get the job done! Built with all stainless steel and aluminum construction, off the shelf components rather than proprietary boards and motors, a stepper-driven applicator as well as a touch screen interface on all models. Speeds on every 700 model are synchronized together to avoid common labeling errors. Additionally, our Autoset bottle measurement and recipe systems secure easy set ups and changeovers.

*We have other models available for custom configurations*

For the SP:

  • Fully automatic
  • Self contained labeler designed to apply one or two body labels to round containers
  • Ability to apply clear labels
  • Spin-in-Place labeling technique
  • Labeling point is referenced from the wall of the container to improve accuracy

For the VS

  • Ordered as one configuration and easily changed
  • Changeovers done by replacing or adding bolt-on parts
  • Conveyor height, width and length can be reconfigured
  • "Gallon" upgrade for containers up to 6½"
  • Air blow-off for removing extra moisture
  • Locking casters
  • Built-in accumulation

For the MB

  • Capable of applying one or two body labels and a neck label
  • Ideal for microbrewery applications
  • Built in bottle accumulation
  • Star-wheel mechanism
  • Extended conveyor on the infeed end
  • Ink jet coder or hot stamp coder for lot/date info
  • Clear label sensor
  • Built-in air blow-off for condensation

For the NR

  • Fully automatic
  • Self teaching label gap sensor
  • Pinch grip designed simplifies the way the web is threaded through the machine

For the NW

  • Fully automatic
  • Self teaching label gap sensor
  • High rate of consistency to 1/32" and top speed of 1200 ipm
  • Designed for non-round containers from 1" to 5" in thickness
  • Labels from 1" to 4½" tall and from 1" to 12" in length
  • Top hold down belt
  • Aligning belts for infeed
  • Ultra fast PLC and accurate stepper-driven labeling applicators
  • Infeed spacing wheel powered by a separate DC motor

The Labeler Model 700 SP is fully automatic with off the shelf components to make replacement easier for the user.  Touchscreen interface for simple operation with a stepper-driven applicator. Ability to apply opaque and clear labels utilizing Spin-in-Place techniques. Gripper plates are designed to the bottle diameter for additional accuracy and precision.

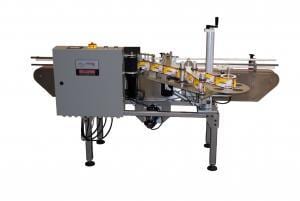

For the Model VS, it is designed as one configuration that is easily changed through replacing or adding bolt-on parts.  Three different labeling styles to pick from -- wrap, Spin-in-Place, or trunnion. Changing your line layout or the packages you run does not make the labeler you purchased obsolete.

With the MB model, it has the ability to apply one or two body labels as well as a neck label. The base configuration is capable of applying one body label which makes it ideal for microbrewery applications. Comes with a built-in accumulation table, star-wheel mechanism for proper bottle spacing for labeling and an extended conveyor on the infeed. Ideal for labeling either pre or post fill.

With the NR model, is it designed to be an easy operation model that is fully automatic as well. The pinch grip system design simplifies the way the web is threaded through the machine. It has a high rate of consistency to 1/32" and a top speed of 1200 ipm. Made for non-round containers from 1" to 5" in thickness and for labels from 1" to 4½" tall and from 1" to 12" in length.

For the NW model, it is fully automatic that is designed with a self teaching label gap sensor that makes set up uncomplicated and trouble free. It has a high rate of consistency of 1/32" and a top speed of 1200 ipm. Built for non-round containers from 1" to 5" in thickness and for labels from 1" to 4½" tall and from 1" to 12" in length. Comes with top hold-down belt, aligning belts for infeed an ultra-fast PLC and accurate stepper-driven labeling applicators.

Design of the SP

  • Clear label sensor
  • Hot stamp coder for date/lot info
  • Heavy duty locking casters

Design of the VS

  • Hot stamp/ink jet coder for lot/date info
  • "Gallon" upgrade for containers up to 6½"
  • Clear label sensor
  • Air blow-off for removing excess moisture
  • Locking casters
  • Spacing wheel for product separation
  • Built in accumulation

Design of the MB

  • Hot stamp coder for lot/date info
  • Ink jet coder for lot/date info
  • Tall label kit for labels up to 7½" tall
  • Built in air blow-off condensation
  • Clear label sensor

Design of the NR

  • Hot stamp coding for lot/date info
  • Wrap belt for round containers
  • Extra tall label kit for labels up to 7½" tall
  • Infeed spacing wheel powered by a separate DC motor
  • Gallon upgrade for containers up to 6½"
  • Locking casters

Design of the NW

  • Hot stamp coding for lot/date info
  • Wrap belt for round containers
  • Extra tall label kit for labels up to 7½" tall
  • Infeed spacing wheel powered by a separate DC motor
  • Gallon upgrade for containers up to 6½"
  • Locking casters
Technical Data Labeler Model 700

700SP

700VS

700NW

700NR

700MB

Function

Automatic
Automatic
Variable speed, automatic
Variable speed, automatic
Automatic

Interface

Touchscreen
Touchscreen
Touchscreen
Touchscreen
Touchscreen

Sensor

Photo-eye
Photo-eye
Photo-eye gap
Photo-eye gap
Photo-eye gap

Type of Label

1 or 2 body labels from the same web
1 body label
Front and back labels or one body and a neck label
Front and back
1 or 2 body labels

Container Type

Round
Round or flat
Non-round round
Non-round
Round

Container Size (diameter)

1-6"
1-5"
1-5"
1-5"
1-5"

Label Size

1-4½" tall to 14" long or tall option labels 4½" to 7½"

1-4½" tall to 14" long or tall option labels 4½" to 7½"

1-4½" tall 12" long

1-4½" tall 12" long
1-4½" tall 12" long

Speed

100/min
100/min
100/min
100/min
100/min

Label Roll Size

12, 14½, 16"

max 12"
max 12"
max 12"
max 12"

Feed

Random or continuous
Star wheel infeed
Random or continuous
Random or continuous
Star wheel infeed

Core Diameter Size

Random or continuous feed
Wrap, Spin-in-Place or trunnion style
Wrap style fr positive control
Wrap
Wrap, Spin-in-Place or trunnion style

Label Application

Random or continuous feed
Wrap, Spin-in-Place or trunnion style
Wrap style for positive control
Wrap
Wrap, Spin-in-Place or trunnion style
