Elevator / Washer / Grinder

The Kreuzmayr Washer/Elevator/Grinder KWEM has the ability to wash, elevate and grind a variety of products to produce mash. This mash usually falls directly into the hopper or dosing box of a single or double belt press.

Read here how we’ve used this equipment to grow multiple cider operations and reduce their labor inputs significantly.

  • The machine is made up entirely of stainless steel
  • Food grade plastic conveyor belt with variable speed drive
  • Plug and play operation, delivered ready for application (1000 and 2000 model)
  • Extremely maintenance friendly
  • Customization of the drive and operator side to be left or right (your choice)
  • Fully automatic operation
  • 3-prong sensor in the mash box of the downstream machine to stop overfilling
  • Single centralized bottom discharge for washing water
  • Easy and quick cleaning

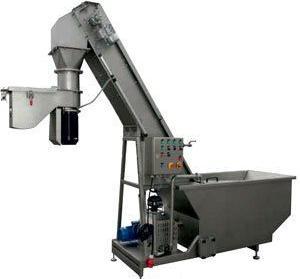

Fruit and vegetables are emptied into the wash basin of the KWEM Washer/Elevator/Grinder via infeed or directly with the GKE Bin Tipper. The product is washed in the basin to eliminate dirt and other particulates. With the KWEM 3000 and up models, an intensive cleaning is performed by means of a water jet circulation pump and air bubbles created by an air blower.

The now cleaned fruit is elevated and passes through a fresh water rinse on the way up the conveyor belt. The product transfers into the directly attached grinding mill to become mash that discharges directly into the dosing box of the belt press.

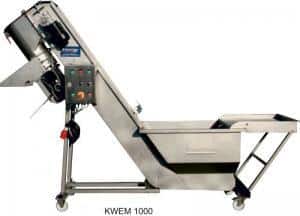

The small models (1000 and 2000) are delivered as a plug and play machine. Once set up in the pressing area, the machine is ready for operation. It can be easily cleaned by one person without any problems. Deflector plates in the washing basin can be disassembled easily without the need of tools.

  • Plugin complete system
  • Compact composition
  • Control cabinet assembled
  • Variable speed for elevator
  • Fully automatic operation
  • Food grade plastic conveyor belt
  • 3-prong sensor probe in the mash box of the downstream machine
  • Single centralized bottom discharge of the wash water
  • Quick and simple cleaning
  • Easily integrates with existing machine parts
  • CE/UL/CSA compliant
KWEM2000 Washer Elevator Grinder
KWEM2000 Washer Elevator Grinder

See more dimensions in the below table

Technical Data KWEM Washer/Elevator/Grinder
Output kg/h (lb/hr)
2000 (4400)
2000 (4400)
3000 (6600)
5500 (12100)
Grinder Engine (kW)
3
3
3
5
Lift Engine (kW)
0.37
0.37
0.37
0.55
Blower Engine (kW)
-
-
0.5
0.85
Water Circulation (kW)
-
1.5
1.5
1.5
Space Requirements (LxWxH mm)
3100 x 675 x 2200
3100 x 675 x 2200
3790 x 1020 x 2820
3790 x 1020 x 2820
Weight (kg)
230
280
575
625
Fill Height Washing Tank (mm)
1000
1000
1000
1000
Mash Discharge Height (mm)
1360
1360
1670
1670
Diameter of Waste Water Connection (mm)
75
75
75
75
  • Larger models are available upon request

*We reserve the right to make technical modifications
