Brush Cleaner / Sorting Tables

Area of Application for Brush Cleaner and Sorting Tables

Brush Cleaner
Brush Cleaner

With the Kreuzmayr presorting assembly, the fruit is transferred through a conveyor belt or bin tipper to a sorting table. Here the fruit and vegetables get presorted and repeatedly turned by the roller conveyor belt which runs in reverse running direction. The rolls, with special plastic bearing guides, catch the stems, leaves or peelings and transfer these to a collection area. This sorting process allows a gentle and even distribution.

We offer various conveyor belts based on the nature of your products. Fruit (from tough root vegetables to delicate berries) is then transferred from the conveyor to the brush cleaner. To ensure gentle but thorough cleaning, the brush cleaner is equipped with soft, rotating brushes. The hulled and washed fruits rolls safely into the washer/elevator/grinder unit and then into a single or double belt press. From the outlet of the press it is discharged onto a coated mash conveyor belt, with up to 30% inclination, and ultimately into a composting container.

Advantages

  • Adjustable working height
  • The machine is made completely of stainless steel
  • Automatic control for the entire unit
  • Plug-in compact unit with stainless steel castors
  • Central collecting area for debris
  • Special non-stick coating on the pomace conveyor belt

Easy Operation

Belt Sorting Conveyor
Belt Sorting Conveyor

The fruits and vegetables are initially placed on the presorting belt, and subsequently transferred to the sorting roll. After the cleaning, the hulled and washed fruit roll safely to the machine outlet. The entire assembly is automatically controlled with the Start-/Stop key.

Workmanship

The base frame consists of a sturdy stainless steel frame. The stainless steel rolls are mounted with special high-grade plastic bearings and the gear mechanism is completely enclosed and therefore maintenance free. The special adapter plugs and the special plastic bearings, facilitate an easy and quick replacement of damaged rolls if needed.

Technical Data

Brush Cleaner

KFB 10 KFB 20
Nominal capacity 5000 kg/hour 8000 kg/hour
Water consumption at 5 bar (liters/min) 3 6.6
Electrical connection (V/60 Hz) 208-480V depending on your needs
Electrical connection (kW) 1.1 1.1



Belt Sorting Conveyor

Nominal capacity 5000 kg/hour
Sorting area (mm) 2000 x 600
Electrical connection (V/60 Hz) 208-480V depending on your needs
Electrical connection (kW) 0.37



Roller Sorting Conveyor
Roller Sorting Conveyor

Roller Sorting Conveyor

Nominal capacity 5000 kg/hour 8000 kg/hour
Sorting area (mm) 3000 x 600 3000 x 800
Electrical connection (V/60 Hz) 208-480V depending on your needs
Electrical connection (kW) 0.37 0.55

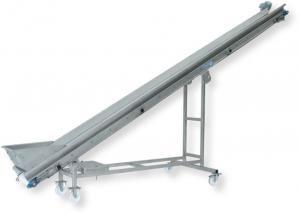

Mash Conveyor
Mash Conveyor



Mash Conveyor

Nominal capacity 1000 kg/hour 3000 kg/hour
Dimensions of belt (mm) 2000 x 300 6000 x 300
Electrical connection (V/60 Hz) 208-480V depending on your needs
Electrical connection (kW) 1.5 1.5
