Bin Tipper GKE

Bin Tipper Area of Application

Produce that can be bin tipped: – Apples, pears, quinces, carrots etc. can all be tipped with the GKE bin tipper. It is the ideal machine to load a Kreuzmayr fruit washer/elevator with the minimum of time and wastage.

Advantages

  • Plug and play operation, the GKE is delivered ready to start work
  • It just needs plugging into a 16 amp socket
  • Easy to use and operate, no difficult controls
  • Stainless steel construction means the GKE is easy to clean and maintain

Function

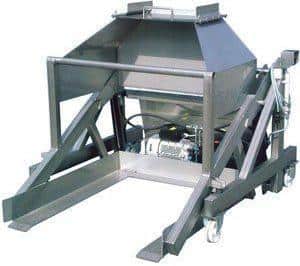

Bin Tipper GKE
Bin Tipper GKE

Orchard bins of fruit or vegetables are fork lifted into the GKE’s sturdy lifting frame. The operator can then tilt and empty the pallet box into a washer/elevator or onto a sorting table by simply pushing the start switch. The GKE’s hydraulic lifting mechanism does the rest. A sliding gate regulates the flow of produce out of the bin to ensure an even flow.

Standard Design

  • Ready to use construction
  • Designed to be used with boxes of 1.0 x 1.2 m or 1.2 x 1.2 m
  • Constructed from stainless steel
  • Compact design
  • Integrated control cabinet
  • Adjustable height discharge chute
  • Transport wheels for maneuverability
  • Easy to clean and maintain
  • Designed to work easily with other equipment
  • UL / CSA / CE certified

Technical Data Bin Tipper

Bin Tipper GKE upright
Bin Tipper GKE upright
Dimensions LxWxH (mm) 1680 x 1480 x 1220
Emptying height (mm) 1000 or 1200
Discharge chute width (mm) 500
Height when tilted open (mm) 2420
Operating cycle time (sec.) 30
Weight (kg) 350
Electrical connection (V/60 Hz) 208-480V depending on your needs
Capacity of electrical connection (kW) 2.2
