Bag-in-Box Fillers

Area of Application

bag-in-box fillers and bottling line combinedWith the Kreuzmayr bag-in-box fillers and bottling lines, fruit juices can be filled into different vessels, thus making it possible to fill liquids (cold or hot from pasteurizer) into bottles or BAG-in-BOX pouches. The flow meter electronically reads the juice volume and he filling amount can be set on a digital display (KBF) The bag-in-box filler stops automatically when the set volume is reached ensuring a clean operation without any overflow of liquids.

Advantages

  • The machines are made completely of stainless steel
  • Quick adjustment for different filling volumes
  • Usable for different pouch- and bottle sizes
  • Filling pump with magnetic-inductive flow meter (KFB 2000)
  • Clean handling and no overflow of juice
  • Clear setting layout through  touchscreen-display (KFB 2000)
  • Fully automatic cleaning mode with cleaning adapter
  • Foam-insensitive level monitoringbottle fillers

Functioning

KBF: Ideally, the puffer tank is filled by the Kreuzmayr pasteurizer and controlled via a filling level indicator. The desired filling volume is set at the digital display and the juice is pumped into the bag via a pump which is monitored by a flow meter. The BAG-in-BOX pouch is then placed into the intake, the cap of the pouch is removed with the gripper and the filling valve is placed into the spout of the BAG. The filling process starts as soon as the spout is sealed and finishes automatically when the set volume is reached.

KRF: The Kreuzmayr line bottlers can fill  bottles with different heights. This is done with a filling valve made of stainless steel with a rubber gasket. The empty bottles are placed under the filler spout. This opens the filling valves and the liquid flows from the buffer tank into the bottles through gravity.

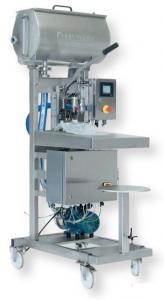

bag-in-box filler 2000
KBF 2000



Standard Design

  • Plug-in complete system
  • Compact design
  • Minimum space requirements
  • Integrated control cabinet
  • Automatic operation
  • Constructed from stainless steel
  • Fast and easy to clean
  • CE / UL / CSA certified

Technical Data Bag-in-Box Fillers and Bottling Lines

KBF 2000 KRF 4 KRF 6 KRF 8
Nominal output in liters(10 litre / 5 litre Bag per hour) 2000 / 1200 400 x 1lt bottles 600 x 1lt bottles 800 x 1lt bottles
Filling accuracy (ml/bag) 50
Electrical Connection (V/Hz) 208-480V N/A
Dimensions (mm) [LengthxWidthxHeight] 800x1020x1900 750x500x1550 1000x500x1550 1350x500x1550
Weight (Kg) 150 40 50 60
Bag contact Surface L x W (mm) 630×480 N/A
Pneumatic Connection (bar) 6 N/A
Air consumption (liters/hour) 300 N/A
